SPANISH TILE PROFILE
Each panels allows for an interlocking system which creates a water tight seal once properly secured. This prevents any additional moisture from compromising the base frame below. Perfect for both residential and commercial projects and comes highly recommended by builders and architects alike. These roof panels are just waiting for you.
Exposed Fastener Roofing Panel

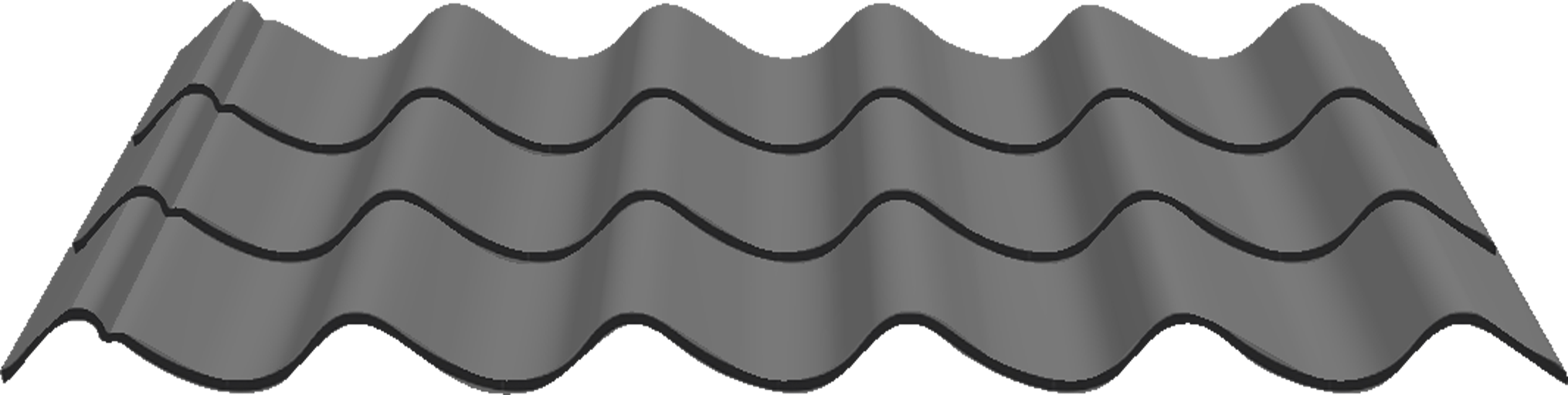

Tile Profile Metal Roofing
The Spanish Tile , has an effective coverage of 3 Ft (914mm) with a total width of 3 ¾ Ft (1143mm). It is only available in 26 gauge (0.5mm thickness) and can be manufactured to any specified length. With the added benefit of an AZM (aluminum, zinc & magnesium) coating, this creates a sheet that is long lasting and that has high colour retention. Each panel has as left side interlocking system which creates an impermeable barrier when joining/lapping full sized sheets. This creates protects the base structure below the sheet. Perfect for homes looking for an additional aesthetic beyond what is commonly bought
Roofing Specifications & Details

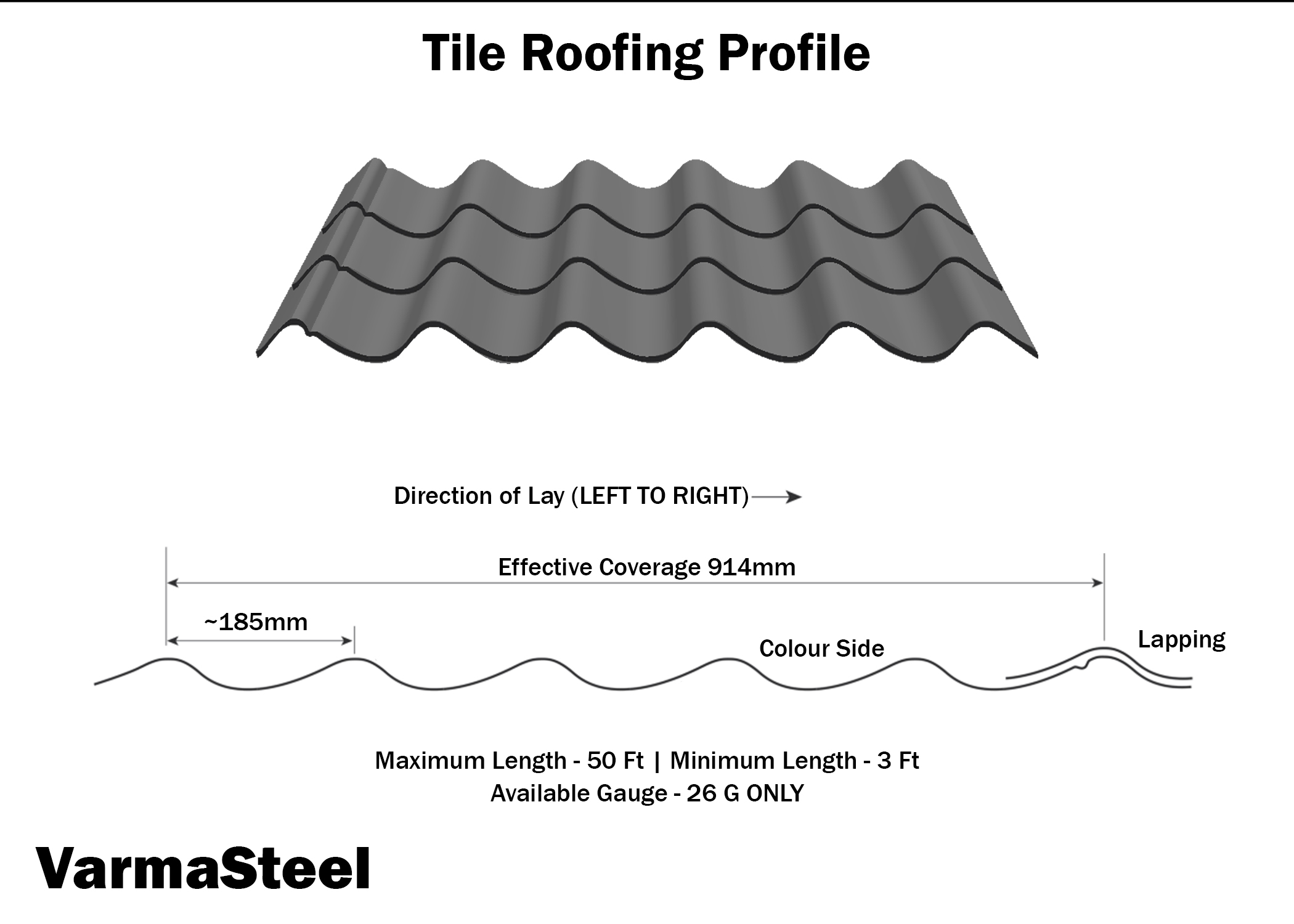

Tile Profile Dimensions
Available Gauges: 26
Installation: metal can be installed over an open purlin system or a solid substrate.
Minimum Roof Slope: 3/12
Fasteners: Exposed Fasteners, Hex Head Metal or Wood Screws
Applications: Residential, Commercial, Agricultural, Interior
Coverage: 914mm, Total Width : 1143mm
Spanish Tile, Available Colours.
Powered by COLORBOND, this gives the Spanish Tile a high color retention that can last years.
With over 20 different colours to choose from, Varma offers the widest selection of roofing colours on the market. Powered by BLUESCOPE Steel COLORBOND technology, each colour is designed and crafted for almost every environment. You can enjoy the process of discovering the perfect colour scheme and design palette for your dream home. From low sheen to metallic colours, our portfolio of colours that are designed to give you a perfect finish that is both durable and easy to clean.
Learn How To Install
Tile Profile Video Installation
The Spanish Tile uses both an interlocking and an exposed fastener system. Each panel on the vertical plane has an left side undergrove which allows for proceeding panels to easily fit into one another. This creates a water tight connection which limits the natural effects on the base structure of the roof.
The exposed fastener system allows for quick and easily installation. Screws are installed directly either under every ridge of the sheet or in a stagger pattern, this allows for an easier runoff and reduced maintenance.
Brochure & Installation Guides
Installation Guide
With these easy to understand instructions, take your roofing skills to the next level.
Technical Sheet
Discover the technology behind every roofing sheet. This technical sheet provides an in-depth look at the complexities of providing you with the perfect roof.
Maintenance Guide
Looking for a way to clean your roof. Check out our maintenance guide which shows how to get the most out of your roof while keeping it clean.
